EMC High Power Amplifier 9 KHz -250 MHz Psat 500 W Wideband Power
Amplifier
Description
The chassis is designed for both military and commercial
applications. The latest device technologies and design methods are
employed to offer high power density, efficiency, and linearity in
a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 0.009 | | 250 | MHz |
| RF INPUT | | 0 | 5 | dBm |
| Power Gain | 57 | | | dB |
| P-1dB Output Power | 300 | | | W |
| P-sat Output Power | 500 | | | W |
| Power Gain Flatness | | ±4 | | dB |
| In/Out Impedance | 50 | Ω |
| Spurious Signals | | | -65 | dBc |
| Harmonic Signals | | -15 | -8 | dBc |
| Gain Adjust Range | | 31.5 | | |
| Gain Adjust Ste | | 0.5 | | |
| Operating Voltage | 200 | 220 | 260 | V AC |
| Supply Power | | | 3500 | W |
| Input VSWR | | | 4 | |
| MECHANICAL |
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*600*223 | mm |
| RF Connectors (Input / Output) | N-K / N-K (N female) | -- |
| Control Connector (Option1) | DB9:Power on/power off control, gain control; Monitoring parameters
include output power, temperature, supply voltage, and supply
current | -- |
| Control Connector (Option2) | RJ45:Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤40 | kg |
| AC Connector | Three-in-one air switch | |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -25 | +55 | °C |
| Housing Temp. | -45 | +55 | °C |
| Amplifier Safeguard Temp. | +80 | °C |
| Protections | With over temperature protection, input over power protection, over
voltage protection, over current protection, output mismatch
protection Maximum withstand standing wave 6:1 | |

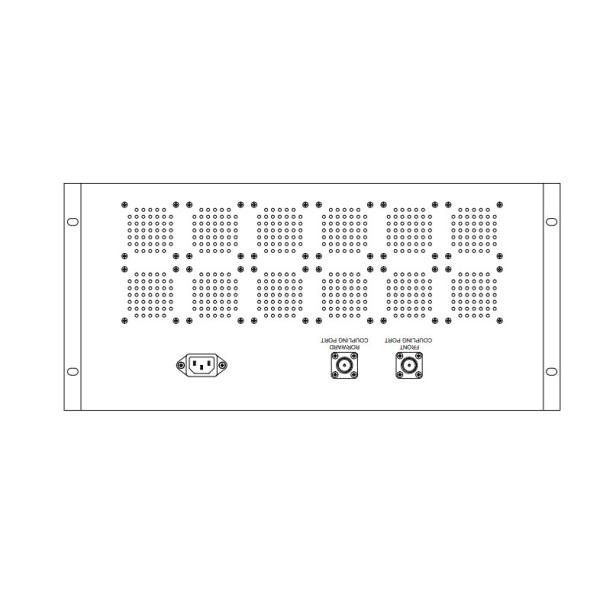

| INPUT/OUTPUT panel Connector |
| AMPLIFIER CONNECTOR TYPE: | —— |
| TRIAD CABLE PART NUMBER: | —— |
| NUMBER | interface type | DESCRIPTION |
| X1 | N-FK | RF IN |
| X2 | N-FK | RF OUT |
| X3 | LCD display | Human-computer interaction interface |
| X4 | Three-in-one air switch | AC/220V/50Hz |
| X5 | RJ45 | LAN |
| X6 | DB9 | Control interface |
| X7 | N-FK | Forward coupling port |
| X8 | N-FK | Reverse coupling port |
| Connector Definition |
| AMPLIFIER CONNECTOR TYPE: | DB9 |
| TRIAD CABLE PART NUMBER: | —— |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 3 | Temp monitoring | Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 | Voltage monitoring | Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 5 | Current monitoring | Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 6 | RXD | RS232 serial bus interface, PA gain adjustment |
| 7 | TXD |
| 8 | GND |
| 9 | NC | NC |
