High Power Output 850W P-Sat Output Power 59.3dBm Power Amplifier
Chassis for Signal Amplification
Description
The 80-1000MHz 850W Ultra Wideband Power Amplifier is a
high-performance RF amplifier designed to meet the demanding
requirements of a wide range of applications. Here are the key
features and specifications of this rack-mounted power amplifier:
Key Features:
- Frequency Range: Operates over a wide frequency range from 80MHz to 1000MHz.
- Power Output: Delivers a substantial output power of 850W, making it suitable
for high-power applications.
- High Gain: Provides significant power gain to ensure robust signal
amplification across the specified frequency range.
- Efficiency: Designed for high efficiency, ensuring minimal power loss and
optimal performance.
- Robust Design: Enclosed in a rugged rack-mounted chassis, providing durability
and stability in various operational environments.
- EMI Shielding: The chassis is equipped with EMI shielding to minimize
electromagnetic interference, ensuring reliable performance.
- Cooling System: Integrated with an efficient cooling system to maintain optimal
operating temperatures and ensure longevity.
Applications:
- Wireless Communication: Enhances signal strength and quality in various wireless
communication systems.
- Broadcasting: Suitable for television and radio broadcasting, providing clear
and powerful signal transmission.
- Radar Systems: Ideal for radar applications, offering high power and
reliability.
- Testing and Measurement: Used in laboratory and field testing scenarios to provide
consistent and accurate signal amplification.
- Military and Aerospace: Supports high-power RF applications in military and aerospace
sectors, ensuring robust and reliable communication and radar
capabilities.
Technical Specifications:
- Frequency Range: 80-1000MHz
- Output Power: 850W
- Gain: Typically high to ensure strong amplification
- Cooling: Efficient cooling mechanism to handle the high power output
- Dimensions: Rack-mounted chassis, typically 19 inches in width, with height
and depth varying according to design requirements
- Weight: Varies based on specific design and additional features
Design and Construction:
- The amplifier is constructed to handle the rigors of high-power RF
applications.
- It includes comprehensive protection features to guard against
over-voltage, over-current, and thermal overload conditions.
- The robust construction and reliable components ensure longevity
and consistent performance in demanding environments.
This ultra-wideband power amplifier is an essential component for
any application requiring high power and broad frequency coverage,
providing exceptional performance and reliability across a wide
range of frequencies.

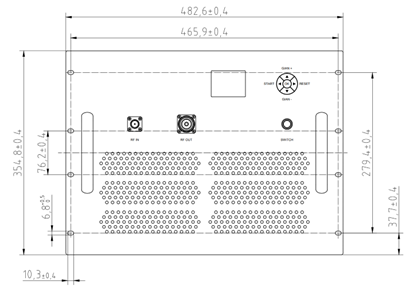

Outline Dimensional Drawing
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 80 | | 1000 | MHz |
| RF INPUT | | 0 | 5 | dBm |
| Power Gain | 59.3 | | | dB |
| P-sat Output Power | 59.3 | | | dBm |
| Power Gain Flatness | | ±4 | | dB |
| In/Out Impedance | 50 | Ω |
| Spurious Signals | | -50 | | dBc |
| Harmonic Signals | | -15 | | dBc |
| Operating Voltage | 200 | 220 | 260 | V AC |
| Supply Power | | | 3500 | W |
| Input VSWR | | | 2 | |
| MECHANICAL |
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | The standard 19-inch shelf is 8U high, 482*550*356 | mm |
| RF Connectors (Input / Output) | N-K / 7/16 (female) | -- |
| Control Connector (Option1) | DB15:Power on/power off control; Gain Control; Monitoring
parameters include output power, temperature Remote control and monitoring can be realized through RS232 | -- |
| Control Connector (Option2) | RJ45:Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤45 | kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | 0 | +55 | °C |
| Humidity Range | 0-90 | % |
| Amplifier Safeguard Temp. | +80 | °C |
| Protections | With over temperature protection, input over power protection,
output mismatch protection Maximum withstand standing wave 4:1 | |
| INPUT/OUTPUT panel Connector |
| AMPLIFIER CONNECTOR TYPE: | —— |
| TRIAD CABLE PART NUMBER: | —— |
| NUMBER | interface type | DESCRIPTION |
| X1 | N-FK | RF IN |
| X2 | 7/16(f) | RF OUT |
| X3 | LCD Display | Human-computer interaction interface |
| X4 | Switch | AC/220V/50Hz |
| X5 | RJ45 | LAN |
| X6 | DB15 | Control interface |
| X7 | N-FK | Forward coupling port |
| X8 | N-FK | Reverse coupling port |
| | | |
| Connector Definition |
| AMPLIFIER CONNECTOR TYPE: | DB15 |
| TRIAD CABLE PART NUMBER: | —— |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (Output analog voltage) |
| 3 | Reverse Power monitoring | Reverse Power Detection (Output analog voltage) |
| 4 | Temp monitoring | Temp monitoring alarm (Output analog voltage) |
| 5 | GND | GND |
| 6 | RXD | RS232 serial bus interface (TTL) |
| 7 | TXD |
| 8 | GND |
| 9-15 | NC | NC |
